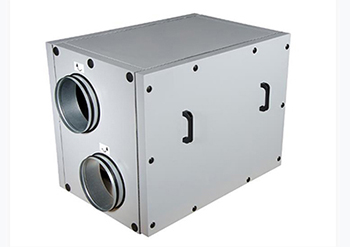

HR85 (Thermal Wheel)

A compact rotary heat recovery and ventilation system with top or side, right or left connection configurations for internal or external use.

Highly efficient and with near silent operation, the HR85 is easy to install and to maintain.

It has a heat recovery efficiency up to 85 per cent and is available with top or side connections and left or right service access: eight models covering airflows from 0.03 m³/s (108 m³/h) to 2.06 m³/s (7416 m³/h) @ 200pa ESP.

Therm-X MVHR Range

The Therm-X Mechanical Ventilation with Heat Recovery Range (MVHR) is a compact, packaged plug and play solution offering fresh air ventilation with heat recovery in horizontal or vertical installations.

The range benefits from high heat recovery efficiency of up to 93 per cent with a near silent operation, making it perfect for small commercial applications, schools, retail and small offices.

Highly efficient, the Therm-X range is fully compliant with Part L of the UK Building Design Regulations and with the Ecodesign Directive 2018.

The range has optional integrated electric post heater, integrated electric post heater, LPHW coil, change over coil (heating and cooling) or direct expansion (DX) coil as well as an extensive range of complimentary ancillaries for installation and control.

Controls

All units feature intuitive, inbuilt controls, meaning there is no need for costly and fragmented third party control company integration. The plug and play installation aids the speed of commissioning and system reliability. Each system comes complete with Modbus compatible touchscreen controls.

For more information, visit www.barkell.co.uk/web/therm-x-mvhr.htm
